Features
- 2 input channels
- Voltage: 0 to 600VAC TRMS
- Current: compatible with AC current probes with voltage outputs
- 64 samples per cycle
- Records Arms, Vrms and VA
- 3 user selectable storage modes; Stop when full, FIFO, XRM®
- Programmable storage rates from 8 every second to 1 every day
- Stores up to 240,000 measurements in non-volatile memory
- Powered by two standard AA Alkaline batteries
- Lightweight, compact, fits anywhere
- 5 LED indicators quickly and clearly display Logger status
- Includes DataView® software
- 300V Cat IV; 600V Cat III with a safety rated current probe attached

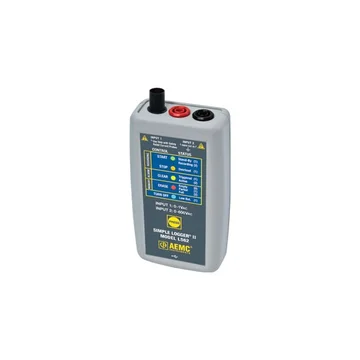

The AEMC L562 Simple Logger® II is a two channel Volt/Amp data logger. The choice of data storage modes
and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to
the application at hand. Extended Recording Mode (XRMTM) and delayed start time are just two of the many
application friendly features.
The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is
performed no more than eight times per second. TRMS calculations are performed on a single line cycle.
This means that the input(s) are ignored between measurement intervals. The main advantage of the logger
is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer
using DataView® software.
Analog information on the input is sampled and converted to a digital signal. This digital signal is processed
and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides
for the transfer of data from the instrument's internal memory to the computer for analysis.
Applications include:
Single phase power monitoring
Residential, commercial, industrial troubleshooting
Find sags and surges
Track energy usage
