Features
- User selectable current & voltage data logger
- 4-20mA, ±100mV, ±1V, ±10V
- 5 per second sample rate
- Event counter, 16 per second sample rate
- Pulse counts, 100 per second sample rate
- Real-time display of measurements
- Includes DataView software
- Data storage, analysis & report generation
- Wireless Bluetooth communication

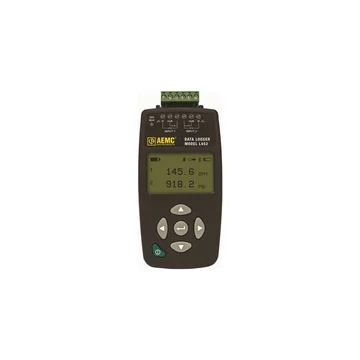

The AEMC L452 data logger is a low cost, simple to use, two-channel data logger. It records DC voltage, DC current, pulses and events.
Its two input channels allow the user to connect to various types of sensors in order to record data such as pressure, temperature, flow,
humidity and more. This logger can also be used to record events such as machine run time. Each channel's real-time measurement is displayed
on the LCD screen.
The L452 communicates via USB or Bluetooth for configuration and data transfer to a PC. The unit can also be configured using its front panel
with a very simple user interface. The menus are multilingual. Users can lock the keypad within the DataView software. Alarms can be set on
various measurements. DataView software for data storage, real-time display, analysis, and report generation from a pre-defined or custom template
is included. Its ergonomics make it simple to use. It has a magnetized rear panel or optional wall mount holster and desktop stand which facilitate
mounting. The L452 operates on rechargeable batteries or can be powered from the USB cable.
AEMC L452 Data Logger Applications Include
Determine machinery run or down times
Determine event sequencing
Count events and records
Record event duration
Machine load monitoring
Record process variables
