Features
- True Megohmmeter
- Test voltage combination of 500 V, 1000 V, 2500 V and 5000 V
- Insulation measurements from 30 kΩ to 10 TΩ
- Adjustable and programmable test voltage (40 to 5100 V)
- Automatic calculation of DAR, PI and DD values
- Direct measurement and display of Capacitance and Leakage Current
- Display resistance, test voltage and run time
- Programmable test run times and PI ratio times
- Smooth and Alarm functions
- Automatic test inhibition if live sample (>25)
- Automatic discharge and display of discharge voltage
- Large dual-display with time, voltage and measurements shown
- Rugged weatherproof field case
- RS-232 interface for direct printing of results
- 128 kB memory for storing field test data
- Remote operation from PC
- Includes DataView software
- Safety rating: EN 61010-1, 600V Cat. III

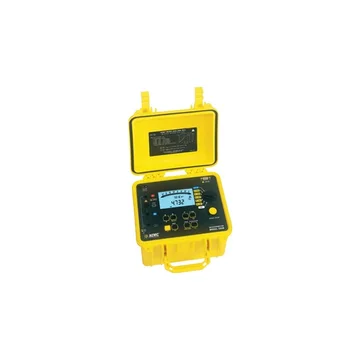

The AEMC model 5060 is a portable, 5000 V megohmmeter that is one of the most innovative products in its class on the market today.
The 5060 is the culmination of years of analyzing how megohmmeters are used in everyday applications and incorporating advanced features
and functions to automate and facilitate the testing process for these applications.
Testing at 500, 1000, 2500 and 5000 volts, the AEMC model 5060 megohmmeter provides insulation measurements from 30 kΩ to 10 TΩ. The
5060 includes advanced features such as automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization
Index (PI) and Dielectric Discharge (DD). The PI ratio times are also user defined. The 5060 displays the test voltage, insulation
resistance and the leakage current during and after the test. Capacitance of the sample and discharge voltage present at the test leads
is displayed at the conclusion of the test.
The Model 5060 offers additional functionality in that an RS-232 port provides the ability to configure the units from a PC and run the
test from the PC. Automatic documentation of test conditions and test results eliminates the need for writing down information. Test
reports can be generated directly from the instrument to a printer or through the PC using the DataView graphing and analysis software
provided.
The AEMC model 5060 was designed with the highest level of safety features built in and conforms to the most recent international insulation
and continuity testing standards including EN 61010-1 and 600V CAT III. Packaged in a rugged insulated case, the unit incorporates test
inhibit capabilities which will not allow test voltages to be generated if a live sample is detected. The test terminals are recessed to
ensure operating safety. The test leads, rated for 5000V for both testing and measurement, are the only truly safety approved 5000V leads
on the market today. The 5060 can be operated from an internal rechargeable battery system or from AC line power.
Our AEMC Model 5060 megohmmeters ship complete with:
Accessory pouch
3 color-coded test leads with integral 5 kV rated hippo clips
Jumper lead
Rechargeable battery pack
Power cord (120 V)
DataView software
RS-232 DB9/DB25 F/F to DB9/DB25 F/F cable (6 foot length)
User manual
AEMC model 5060 megohmmeter specifications:
Insulation Tests
Test Voltage/Range
500 V: 30 kΩ to 2000 GΩ (2 TΩ)
1000 V: 100 kΩ to 4000 GΩ (4 TΩ)
2500 V: 100 kΩ to 10,000 GΩ (10 TΩ)
5000 V: 300 kΩ to 10,000 GΩ (10 TΩ)
Automatic Voltage (programmable)
40 to 1000 V: 10 V increments
1000 to 5100 V: 100 V increments
Short Circuit Current
< 1.6 mA ± 5%
Accuracy
1 kΩ to 40 GΩ: ±5% of reading ± 3 cts
40 GΩ to 10 TΩ: ±15% of reading ± 10 cts
DAR (1 min/30 sec)
0.02 to 50.00
PI (10 min/1 min & user programmable)
0.02 to 50.00
DD : current/test voltage + capacitance)
0.02 to 50.00
Capacitance Check
0.005 to 49.99 µF; max resolution 1 nF
Leakage Current Measurement
0.00 nA to 3 mA; max resolution 1 pA
Programmable Run Time
1 to 60 min
Smooth Function (user selectable)
Digital filtering stabilized display readings
Discharge After Test
Automatic
Discharge Voltage Display
Yes
Voltage Test/Safety Check
0 to 1000 VAC/DC (16 to 420 Hz); 1 V resolution
Voltage Warning Indicator
Yes > 25 V
Test Inhibition
Yes > 25 V
Guard terminal
Yes, adjustable from 25 to 1000 V
Power Source
Battery: 8 Rechargeable NiMH batteries
Line Power: 85 to 256 VAC (50/60 Hz)
Mechanical
Dimensions
10.63 x 9.84 x 7.09"
Weight
9.5 lbs
Protection Index
IP53
Display
Backlight
Blue electroluminescent
Display Size
4 x 2.25"
Display
Digital: Two 4000-count displays
Analog: 33- segment analog bargraph
Communication
Direct to Printer
Yes, preset format
Memory
128 kB
Reading Intervals (programmable)
5 sec to 15 min
Test Voltage Display
Yes
Elapsed Time Display
Yes
Real Time/Date Display
Yes
Test Voltage Lockout
User programmed
Storage of Test Results
Stores over 1500 readings
Communication Port
RS-232
Software
DataView (included)
PC Operation of Instrument
Yes
