Features
- 0.001 to 10A, 10mA to 100A
- 10,000-count LCD display excellent resolution
- 100A AC/DC ammeter with low
- 10A range (1mA resolution)
- Tapered jaws for crowded wiring areas (Ø.45" to 12mm jaw opening)
- 600V AC/DC voltmeter
- Analog output in A AC/DC
- Auto-tanging & Adc zero push-button
- Data HOLD & PEAK functions
- Relative function to compare two measurements
- Ohm range & continuity test with beeper
- AUTO-OFF and low battery indicator
- IEC/EN 61010 safety rated & CE Mark
- 600Vrms overload protection

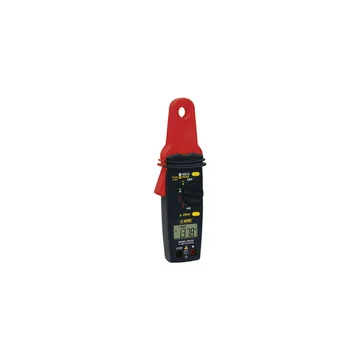

The AEMC CM605 100A AC/DC low current clamp-on meter is an ideal choice for both process and general industrial markets. It is also the perfect instrument for measuring
4 to 20mA process signals and higher currents (up to 100A) associated with general industrial monitoring and troubleshooting.
The CM605 is a versatile device that is capable of measuring both AC/DC voltages, up to 600V, and AC/DC current. It can also measure resistance up to 10kΩ and includes a
continuity buzzer to assist in circuit verification. The meter can also hold the last reading in the display and capture the peak value at the time of the measurement.
AEMC CM605 100A AC/DC Low Current Clamp-on Meter Applications
Process loop monitoring
Automotive electrical troubleshooting
Industrial plant maintenance
General AC and DC voltage and current monitoring
Continuity checking
AEMC CM605 100A AC/DC Low Current Clamp-On Meter Includes
Test Leads
Soft carrying case
2 1.5V AAA
User manual
