Features
- 1000A AC current measurements
- 1000A DC current measurements (model 675 only)
- 1400Vdc volt measurements
- Resistance measurement to 10,000Ω
- Continuity with beeper below 35Ω
- Frequency measurements from V and A inputs
- 1ms Peak function for fast capture of signals
- Hold function to “freeze” readings
- Designed to measure Amps and Volts at the same time
- Push-button for easy Adc zeroing
- Large easy-to-read, 9999-count, backlit display

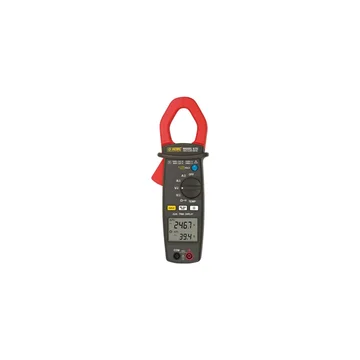

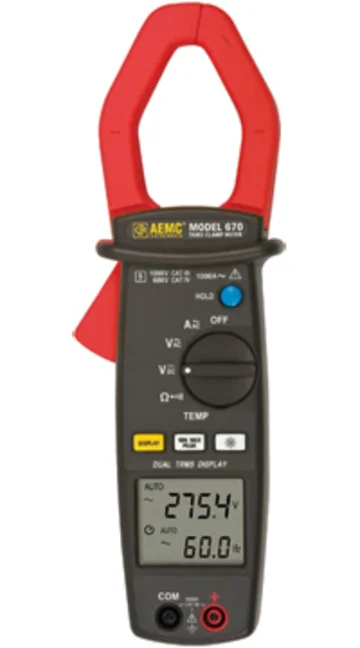

The AEMC® Models 670 and 675 are general purpose, dual display, professional clamp-on meters that
measure up to the toughest standards. These meters offer a complete set of measurement
functions (AC Amps, DC Amps [675 only], AC Volts, DC Volts, Ohms, Continuity with beeper,
Frequency from V or A Input, and Temperature) and are in compliance with international
safety and quality standards to ensure professional and reliable measuring tools.
These meters are designed to measure and display amps and volts at the same time. They are
also auto-ranging and provide the best measurement range and resolution for troubleshooting.
The Models 670 and 675 are sized for comfortable, one-handed operation. The tapered and
hooked jaw design facilitates maneuvering in crowded wiring and breaker panels, making it
easy to select conductors. The jaw opening accommodates one 750kcmil cable or two 350kcmil
cables. The large and easy-toread 9999-count LCD features comprehensive user information
symbols, such as low battery, polarity and overload. Both models are equipped with a
Data Hold function that freezes the measurement for later viewing and Min/Max, and Peak function
for capture of signals.
The Model 670 and 675 are True RMS clamp-on meters that provide RMS measurements for
today's non-linear electrical environments.
Applications include:
Commercial, industrial, residential and HVAC troubleshooting
Power panel, junction box and battery bank monitoring
AC or DC motor testing
Power plant troubleshooting
Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
Ships complete with:
Test leads
9V Alkaline battery
Soft carrying case
User manual
