Features
- 1000AAC or 1000AAC/DC current measurements
- 750VAC or 1000VDC volt measurements
- TRMS measurements
- Resistance measurements to 4000Ω
- Continuity with beeper below 40Ω
- Frequency measurements from V and A
- Operating Temperature: -14° to 122°F (-25 to 50°C)
- Diode test
- 1ms Peak function for fast captureof signals
- Hold function to “freeze” readings
- Push-button for easy ADC zeroing
- Large, easy-to-read 4000-count display
- 42-segment analog bargraph

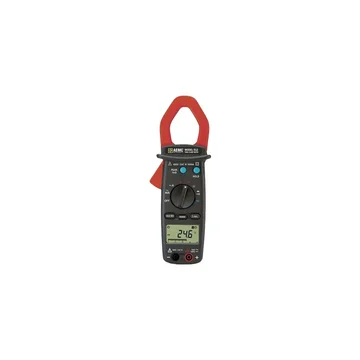

The AEMC® Model 514 Clamp On Meter is a general purpose professional clamp-on meter that measures up to
the toughest standards. it is built into a rugged mechanical case and is designed using quality
polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance
with international safety and quality standards to ensure professional and reliable measuring tools. The
Auto-Ranging function provides the best measurement range and resolution for troubleshooting. It also has
a high resolution 40A range.
The Model 514 measures AC Amps, AC Volts, as well as DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A)
and has a Diode Test function. It also uses Hall Effect sensor technology that provides both DC and
AC current measurements to 1000A.
The Model 514 is comfortable in size, provides one-handed operation. The tapered and hooked jaw design facilitates
maneuvering in crowded wiring and breaker panels, making it easy to select conductors. The jaw opening accommodates one
750MCM cable or two 350MCM cables. The large and easy-to-read 4000-count LCD features comprehensive user information
symbols, such as low battery, polarity, overload, and an analog bargraph for easy trend readings. It is also equipped
with a Data Hold function that freezes the measurement for later viewing, Min/Max, and a fast 1ms Peak Hold function for capture
of signals.
The Model 514 is a True RMS clamp-on that provides RMS measurements for today's non-linear electrical environments.
The Model 514 includes:
Pair of test leads (red/black with probe tips)
9V battery
Soft carrying pouch
User manual
Applications include:
Commercial, industrial, residential and HVAC troubleshooting
Power panel, junction box and battery bank monitoring
AC or DC motor testing
Power plant troubleshooting
Electrical testing and troubleshooting on traditional and non-linear loads,
such as adjustable speed drives and computers
