Features
- 1000V CAT IV Rated
- UL 94 flame retardant self-extinguishing
- IP54 Rated
- 10,000-count blue electroluminescent backlit display
- Measures up to 1000AAC and 2000ADC
- Measures temperature in °F or °C using a K-type Thermocouple
- Measures frequency to 20kHz with 0.1Hz resolution
- Auto selects AC or DC measurement voltage
- True InRush™ current measurement with 1mS capture
- Delta relative function for tracking deviation from reference values
- Jaw opening up to 1.89"
- Leads are constructed with a flexible silicone material

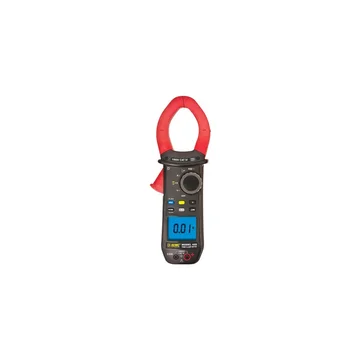

The AEMC Model 403 TRMS Clamp On Meter provides a new standard for safety and measurement capability not available in
any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments.
It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54
rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even
with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and
continuity, the Model 403 offers several unequaled functions including: True InRush™, Adapter function, Delta relative
function, Temperature measurement and more.
Applications include:
General purpose electrical troubleshooting
Motor start up analysis
Voltage troubleshooting
Bond and continuity checking
Temperature analysis
