Description / توضیحات

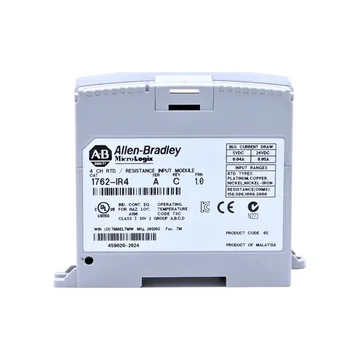

Model 1762-IR4
Dimensions, H x W x D
90 x 40 x 87 mm (3.54 x1.58 x 3.43 in.)
height including mounting tabs is 110 mm (4.33 in.)
Approximate Shipping Weight (with carton) 260 g (0.57 lbs.)
Storage Temperature -40 85 ?C (-40 185 ?F)
Operating Temperature
0 55 ?C (+32 131 ?F)
Operating Humidity
5% to 95% non-condensing
Operating Altitude 2000 meters (6561 feet)
Vibration
Bus Current Draw (max.)
40 mA @ 5V DC
50 mA @ 24V DC
Heat Dissipation
1.5 Watts
Input Group to System Isolation
30V AC/30V DC rated working voltage?
(N.E.C. Class 2 required)
(IEC Class 2 reinforced insulation)
Vendor I.D. Code 1
Product Type Code 10
Product Code
65
Hazardous Environment Class
Class I, Division 2, Hazardous Location, Groups A, B, C, D
ISA/ANSI 12.12.01
(C-UL under CSA C22.2 No. 213)
Radiated and Conducted Emissions EN50081-2 Class A
ESD Immunity (EN61000-4-2) 4 kV contact, 8 kV air, 4 kV indirect
Radiated Immunity (EN61000-4-3) 10 V/m, 80 1000 MHz, 80% amplitude modulation, +900 MHz, keyed carrier
Fast Transient Burst (EN61000-4-4) 2 kV, 5 kHz
Surge Immunity (EN61000-4-5) 1 kV galvanic gun
Conducted Immunity (EN61000-4-6) 10V, 0.15 80 MHz?
Rated working voltage is the maximum continuous voltage that can be applied at the terminals with respect to earth ground.
Conducted Immunity frequency range may be 150 kHz to 30 MHz if the Radiated Immunity frequency range is 30 MHz to 1000 MHz.
