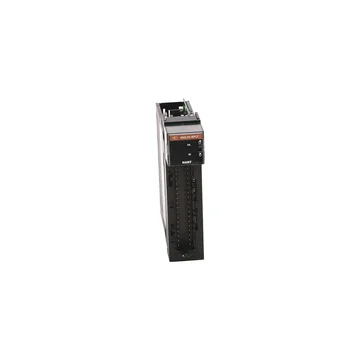

1756-IF8H | Allen Bradley HART Analog Input Module

Name: 1756-IF8H | Allen Bradley HART Analog Input Module
Brand: Allen-Bradley
Price: 1869800000 IRR
Availability: InStock

برند :

Allen-Bradley

پارت نامبر :

1756-IF8H

شماره انبار :

ST-48574

زمان تحویل:

5 هفته

قیمت حدودی:

186,980,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Brand	Allen-Bradley
Model	HART Analog Input Module
Condition	New & Original in Factory Packing
Resolution	16...21 bits for all ranges
Certification	C-UL-us, CE, RCM, Ex, KC, EAC
DTM Supported	Yes
Compatible With	HART 5, 6, 7
Factory Warranty	12 Months
Isolation Voltage	50V (continuous), basic insulation type Tested at 1500V AC for 60 s, I/O to backplane
Relative Humidity	5...95% non-condensing
Number of Channels	8 differential inputs, 1 HART modem per module
Calibration Interval	12 months typical
Enclosure Type Rating	None (open style)
Overvoltage Protection	30V DC voltage; 8V DC current
Open Circuit Detection Time	5 s

Description / توضیحات

Technical Specifications Input Range: 0...5V, 1...5V,0...10V, ? 10V voltage 0...20 mA, 4...20 mA current Module HART Scan Time: Analog: 18...488 ms (filter dependent). HART: typically 1 s per HART channel enabled. Estimate 10 s if all 8 channels have HART enabled. *Pass through messages, handheld communications, secondary masters, communication errors, or configuration changes can significantly increase the update time. Calibrated Accuracy at 25?C (77?F) with HART Disabled: Better than 0.05% of range - voltage Better than 0.15% of range - current Temperature Code: North American: T4A IEC: T4
