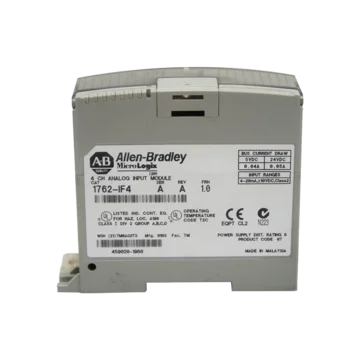

1762-IF4 | Allen Bradley MicroLogix Analog Input Module

Name: 1762-IF4 | Allen Bradley MicroLogix Analog Input Module
Brand: Allen-Bradley
Price: 1135100000 IRR
Availability: InStock

برند :

Allen-Bradley

پارت نامبر :

1762-IF4

شماره انبار :

ST-49825

زمان تحویل:

6 هفته

قیمت حدودی:

113,510,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Type	MicroLogix 4 Point Analog Input Module
Brand	Allen Bradley
Resolution	15 bits (bipolar)
Product code	67
Repeatability?	?0.12%
Vendor ID code	1
Wiring category4	2 - on signal ports
Dimensions, HxWxD	90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.)
Pilot duty rating	Not rated
Product type code	10
Recommended cable	Belden 8761 (shielded)
Bus current draw, max	40 mA @ 5V DC; 50 mA @ 24V DC
Enclosure type rating	IP20
North American temp code	T3C
Approximate shipping weight (with carton)	235 g (8.28 oz)

Description / توضیحات

General Specifications Analog normal operating range: Voltage: -10 10V DC; Current: 4 20 mA Full scale? analog ranges: Voltage: -10.5 10.5V DC; Current: -21 21 mA Input group to system isolation: 30V AC/30V DC rated working voltage? (IEC Class 2 reinforced insulation) type test: 500V AC or 707V DC for 1 min Module power LED: On: indicates power is applied. NOTE: The over- or under-range flag comes on when the normal operating range (over/under) is exceeded. The module continues to convert the analog input up to the maximum full scale range. Repeatability is the ability of the input module to register the same reading in successive measurements for the same input signal. Rated working voltage is the maximum continuous voltage that can be applied at the terminals with respect to earth ground. Use this Conductor Category information for planning conductor routing.
