Features
- Basic Accuracy: 0.09%
- True RMS measurement
- Measures: AC/DCV (1kV), Amps (10A), resistance, frequency, temperature, capacitance, continuity
- 3.5 digit, 7-segment display
- 6,000 count with 31-segment bar graph display
- Data, Auto & Range hold
- Low-pass filter (LPF)
- Maximum, minimum & average values
- Safety standards EN61010-1, 1000V CAT III, 600V CAT IV
- Data logging capability for up to 1,600 data points (TY530 only)

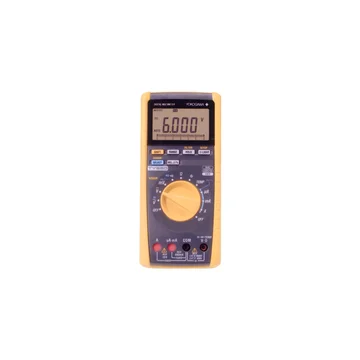

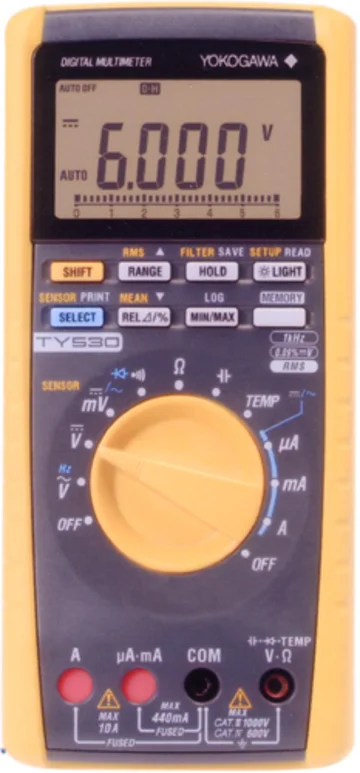

Yokogawa TY500 Series digital multimeters offer high precision with a basic accuracy of 0.09% and true RMS measurement.
The backlit 3.5 digit, 7-segment display makes for easy readability, and the Yokogawa TY500 Series digital multimeter
also features a 6,000 count with 31-segment bar graph display. This Yokogawa multimeter has the ability to measure
AC/DCV (1kV), Amps (10A), resistance, frequency, temperature, capacitance and continuity.
Other features of the Yokogawa TY500 Series digital multimeter includes data, auto and range hold, low-pass filter (LPF),
displays of maximum, minimum and average values along with safety shutters. The safety shutters will prevent erroneous
insertion of test leads into current measurement terminals. The Yokogawa TY500 Series digital multimeter includes an
optional data logging-mode memory capable of saving up to 1600 data points.
The Yokogawa TY500 Series digital multimeter offers safety standards of EN61010-1, 1000V CAT III, and 600V CAT IV. These
Yokogawa meter includes 4 AA (R6) dry cells, one test lead set, 10A/1000V and 440mA/1000V fuses (440mA installed) and
an instruction manual.
