Features
- Light weight & compact design
- Mean value display or True RMS display
- Sleep function
- Response time: 2 seconds

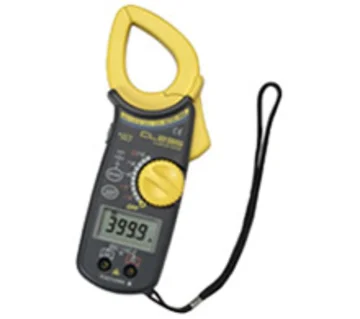

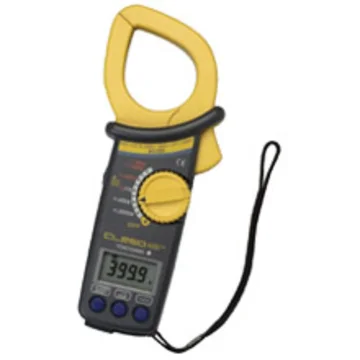

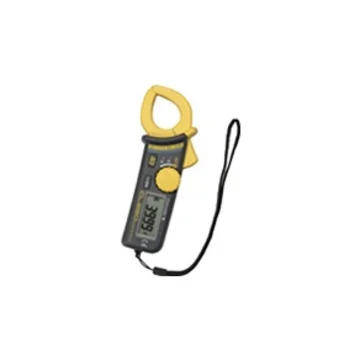

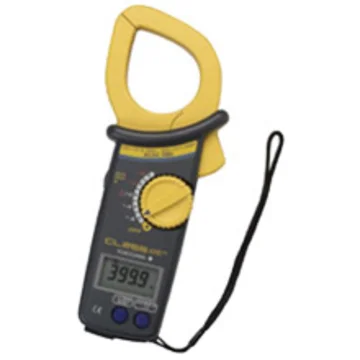

The Yokogawa CL200 Series clamp-on tester is capable of measuring currents in conductors from 24mm
to 55mm in diameter. Yokogawa CL200 Series clamp-on testers are lightweight and have a compact design
for easy portability. All four models of Yokogawa CL200 Series clamp-on testers offer data hold sleep
function features.
Model
CL220
CL235
CL250
CL255
Diameter of measurable conductor
24mm
33mm
55mm
55mm
Display
3999
3999
3999
3999
DC current
Range
40/300A
400/1000A
400/2000A
400/2000A
Resolution
0.01A
0.1A
0.1A
0.1A
AC current
Range
40/300A
400/600A
400/2000A
400/2000A
Resolution
0.01A
0.1A
0.1A
0.1A
Frequency Characteristics
20~1kHz
40~1kHz
40~1kHz
30~1kHz
Method of detection
Mean value
True RMS
Mean value
True RMS
Standards
EN61010-1, EN61010-2-032
EN61010-1, EN61010-2-031, EN61010-2-032
EN61010-1, EN61010-2-031, EN61010-2-032
EN61010-1, EN61010-2-031, EN61010-2-032
Yokogawa CL200 Series clamp-on testers included test leads (where applicable) and a carrying case.
