Features
- Auto Power-off
- Mean value or True RMS models
- Response time: 2 seconds
- Data hold
- Peak hold

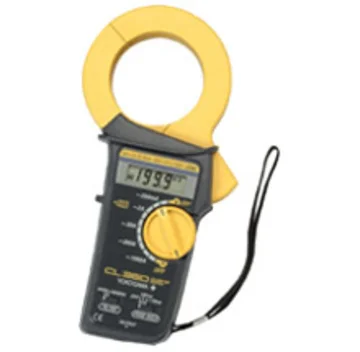

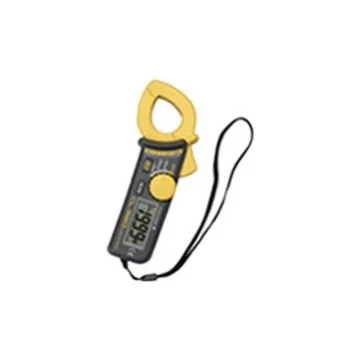

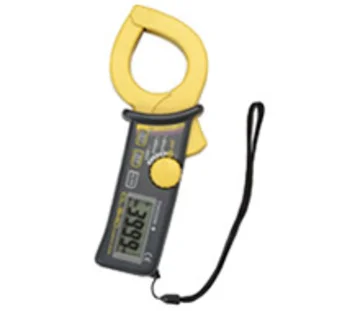

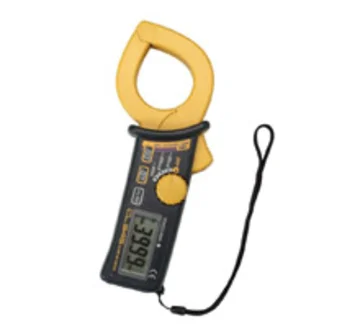

The Yokogawa CL300 Series clamp-on testers are available with mean value or True RMS methods of
detection. Other features of the Yokogawa CL300 Series clamp-on tester include auto power-off,
manual range switching, data hold, and peak hold. Yokogawa CL300 Series clamp-on testers also
have a response time of approximately 2 seconds.
Model
CL320
CL340
CL345
CL360
Diameter of measurable conductor
24mm
40mm
40mm
68mm
Display
1999
3999
4200
1999
AC current
Range
20/200mA,200A
40/400mA,400A
40/400mA,400A
200mA/2/20/200/1000A
Resolution
0.01mA
0.01mA
0.01mA
0.1mA
Frequency Characteristics
40~400Hz
20~1kHz
20~1kHz
40~1kHz
Method of detection
Mean value
Mean value
True RMS
Mean value
Standards
EN61010-1, EN61010-2-032 (CAT.III 300 V)
EN61010-1, EN61010-2-032 (CAT.III 300 V)
EN61010-1, EN61010-2-032 (CAT.III 300 V)
EN61010-1, EN61010-2-032 (CAT.III 300 V)
Yokogawa CL300 Series clamp-on testers include test leads (where applicable) and a carrying case.
