Features
- 14 to 212°F temperature range
- 0.05 K accuracy at 32°F (0°C)
- 0.1°C resolution
- 15 min from 14°F to 212°F
10 min from 212 to 14°F
5 min from 73 to 14°F - 5.91 in (150mm) immersion depth
- Aluminum block material

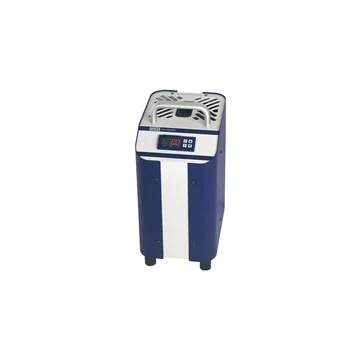

The WIKA CTD9100-ZERO Dry Well Calibrator provides simple calibration at 32°F (0°C). The operating position is defined as upright, since this achieves the optimum temperature distribution. The CTD9100-ZERO is suited for on-site calibrations and extremely user-friendly. Due to its compact design and low weight, the CTD9100-ZERO can be taken and used almost anywhere. The new instrument concept brings together a stable heat source with precision Pt100 temperature measurement. This enables industrial temperature probes to be calibrated even more efficiently. Regular monitoring of temperature probes helps to recognize failures promptly and shorten down times.
The temperature dry-well calibrators of the CTD9100 series work with temperature-controlled metal blocks and interchangeable inserts. The calibration temperature, adjusted simply using two buttons on the controller, can be very quickly controlled. The actual and set temperature of the heating block can be displayed simultaneously on a large 4-digit, high-contrast LC display. Thus reading errors are virtually eliminated.
Applications for the CTD9100-ZERO include:
Simple calibration of thermometers at 32°F (0°C)
Tempering of thermocouple cold junctions
Test benches and calibration laboratories
