Features
- Heating time 6 min from 68 to 572°F
- Cooling time 14 min from 572 to 140°F
- 100mm (3.94 in) immersion depth
- Brass insert material

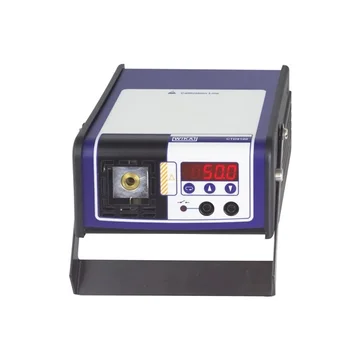

The WIKA CTD9100-375 Temperature Dry Well Calibrator is suited for on-site calibrations and is extremely user-friendly. Due to its compact design and low weight, the CTD9100-375 can be taken and used almost anywhere. The new instrument concept brings together a stable heat source with precision Pt100 temperature measurement. This enables industrial temperature probes to be calibrated even more efficiently. Regular monitoring of temperature probes helps to recognize failures promptly and shorten down times.
The temperature dry-well calibrators of the CTD9100 series work with temperature-controlled metal blocks and interchangeable inserts. The calibration temperature, adjusted simply using two buttons on the controller, can be very quickly controlled. The set temperature of the heating block is displayed on a large 4-digit, high-contrast LED display, which virtually eliminates reading errors.
Applications for the CTD9100-375 include:
Testing and calibration of temperature measuring instruments
Reference instrument for on-site laboratories for the calibration of thermometers
On-site calibration
