Features
- ±3K accuracy
- ±0.4K at 1,000°C stability
- 175mm immersion depth
- 50 min heating time
- 150 min cooling time
- Ceramic sleeve material
- Compact design
- Simple operation

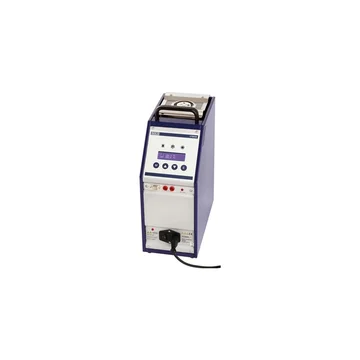

The WIKA CTD9100-1100 Temperature Dry Well Calibrator is suited for on-site calibrations and is extremely user-friendly. Due to its compact design and low weight, the CTD9100-1100 can be taken and used almost anywhere. The new instrument concept brings together a stable heat source with precision Pt100 temperature measurement. This enables industrial temperature probes to be calibrated even more efficiently. Regular monitoring of temperature probes helps to recognize failures promptly and shorten down times.
The temperature dry-well calibrators of the CTD9100 series work with temperature-controlled metal blocks and interchangeable inserts. The calibration temperature, adjusted simply using two buttons on the controller, can be very quickly controlled. The actual and set temperature of the heating block can be displayed simultaneously on a large 4-digit, high-contrast LC display. Thus reading errors are virtually eliminated.
Applications for the CTD9100-1100 include:
Testing and calibration of temperature measuring instruments
Reference instrument for works laboratories for the calibration of thermometers
Also suitable for on-site use
