Description / توضیحات
Model and Suffix Codes

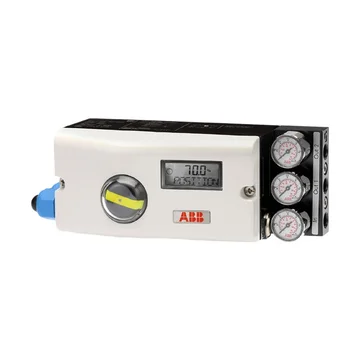

Model V18345 TZIDC Electro-Pneumatic Positioner, intelligent, configurable, with indicator and operator panel
Case/Mounting 2 0 Case made of aluminium, varnished, with mechanical position indicator, for mounting to linear actuators acc. DIN / IEC 534 / NAMUR or to rotary actuators acc. VDI / VDE 3845
Input / Communication Port 1 Input 4 ... 20 mA, two-wire, with connector plug for LKS adapter
Explosion Protection 0 Without
Output / Safe Position (in case of an electrical power failure) 5 Double acting, fail freeze¹
Connections 6 Cable: Thread M20 x 1.5, air pipe: Thread G 1/4
Option Modules for Analog or Digital Position Feedback 1 Plug-in module for analog position feedback, signal range 4 ... 20 mA, two-wire
Optional Mechanical Kit for Digital Position Feedback 5 0 Mechanical kit for digital position feedback with 24 V AC / DC microswitches (change-over contacts)²
P
Not for integral mounting.
Not for explosion protected version and only for model with mechanical position indicator.
