Description / توضیحات
Model and Suffix Codes

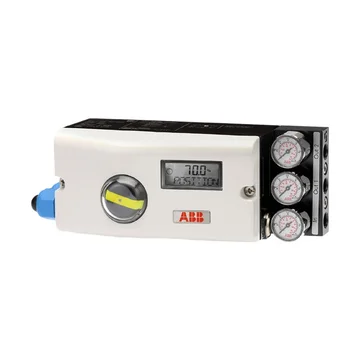

Model V18345 TZIDC Electro-Pneumatic Positioner, intelligent, configurable, with indicator and operator panel
Case/Mounting 1 0 Case made of aluminium, varnished, for mounting to linear actuators acc. DIN / IEC 534 / NAMUR or to rotary actuators acc. VDI / VDE 3845
Input / Communication Port 2 Input 4 ... 20 mA, two-wire, with connector plug for LKS adapter and FSK module for HART communication
Explosion Protection 7 ATEX II 2 G Ex ia IIC T6 resp. T4 Gb
Output / Safe Position (in case of an electrical power failure) 4 Double acting, fail safe¹
Connections 2 Cable: Thread 1/2-14 NPT, air pipe: Thread 1/4-18 NPT
Option Modules for Analog or Digital Position Feedback 1 Plug-in module for analog position feedback, signal range 4 ... 20 mA, two-wire
Optional Mechanical Kit for Digital Position Feedback 00 Without
Design (Varnish / Coding) 1 Standard
Not for integral mounting.
