Features
- "EZ Setup" guided setup for first time users
- Rate/total and batching functions
- Menu selectable hardware & software features
- Environmental compliance monitoring and report generation
- Universal viscosity curve (UVC) and API Eq.
- Advanced batching features: overrun compensation, autobatch start, print end of batch, slowfill, 2-stage batching
- Isolated outputs standard
- RS-232 port standard, RS-485 optional
- Advanced printing capabilities
- Windows™ setup software
- DIN enclosure with two piece connectors
- On board data logging
- DDE server & HMI software available
- Enhanced modem features for remote metering
- Wall mount enclosure

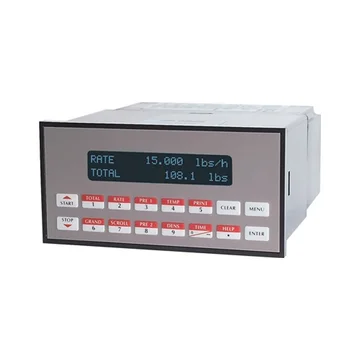

The KEP SUPERtrol-I flow computer is a versatile instrument compatible with a variety of flowmeter types in liquid
applications. It can be programmed for advanced ratemeter, totalizer and batcher functions.
Multiple flow equations and instrument functions are available with the SUPERtrol-I along with many
advanced features. The alphanumeric display shows measured and calculated parameters in an easy
to understand format. Single key direct access to measurements and display scrolling is supported.
The versatility of the KEP SUPERtrol-I flow computer permits a wide degree of versatility
within the instrument package. The various hardware inputs and outputs can be "soft" assigned
to meet a variety of common application needs. The user "soft selects" the usage of each
input/output while configuring the instrument. The isolated analog output can be chosen to follow
volume flow, corrected volume flow, mass flow, temperature, or density by means of a menu selection.
Most hardware features are assignable by this method.
The user can assign the standard RS-232 serial port of the SUPERtrol-I for data logging, transaction printing, or for
connection to a modem for remote meter reading. Remote metering software is available. A Service or
Test mode is provided to assist the user during startup system check out by monitoring inputs and
exercising outputs and printing system setup.
