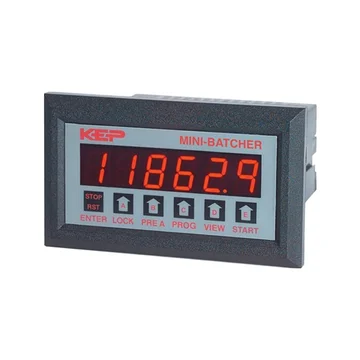

KEP MB2 MINI-Batcher Flow Batcher

Features

• 5-digit scaling factor
• Display rate, batch size and (number of batches or grand total)
• Second B relay programmable for output at pre-warn or selected batch/grand total
• Pulse Input: 10 kHz Max
• Security lockout
• RS422/RS232 serial communication option
• Modbus RTU RS422/RS485/RS232
• NEMA 4X / IP65 front panel
• 30 mV magnetic pickup input option
• 4-20 mA or 0-20 mA analog output option

The KEP MB2 MINI-Batcher flow batcher is a 6-digit totalizer and 4.5 digit ratemeter with two relay outputs. One output is dedicated to the batch amount (preset A), while the other can be activated for pre-warn or batch/grand total. This KEP flow batcher can count up to the preset (reset to 0) or down from the preset (set to preset). Start, stop and reset functions can be activated from the front panel or remote inputs of the KEP MB2 MINI-Batcher flow batcher. An analog output (assignable for rate or batch amount) is available for data logging. Several KEP units can communicate to a host computer on a single RS232 or RS422 loop. The KEP MB2 MINI-Batcher flow batcher is ideal for all batching applications.
