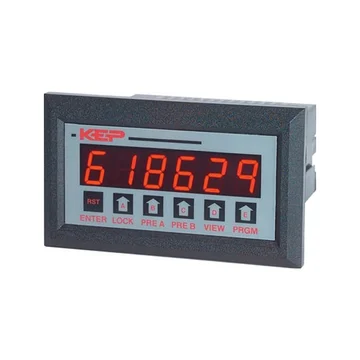

KEP ES-756 Ratemeter & Totalizer

Features

• Set scaling from front panel
• Separate scaling of rate and total
• 2 set points assignable to rate or total
• Display rate, integrated total and peak & valley
• 0-5V, 0-10V, 1-5V, 4-20mA or 0-20mA analog input
• NEMA 4X/IP 65 front panel
• 24V output power for peripherals
• Scaled pulse output on output A or B
• 4-20mA output (optional)
• Square root extraction (optional)

The KEP ES-756 is an integrating totalizer and ratemeter which accepts analog signal inputs. Featuring a 6-digit, 7-segment LED display, the ES-756 can be field programmed to accept 0-20mA, 4-20mA, 0-5V, 0-10V or 1-5V signals. A 4-20mA output option is available with the KEP ES-756 ratemeter and totalizer to control strip recorders or other peripherals. A scaled pulse output setting is available and can be assigned to either output A or B. The full scale setting is programmable from the front panel. By pressing the "view" button, the unit will display: integrated total, rate, peak or valley. Other features of the KEP ES-756 ratemeter and totalizer include a NEMA 4X/IP 65 front panel, +24V output power for peripherals and optional square root extraction.
