Features
- For non-metalic and metalic tanks
- Compact dual rod design
- Accuracy 1% of span
- 1-1/2 inch NPT thread standard fitting
- Heavy duty industrial design
- With Teflon fitting, all wetted surfaces Teflon
- 12 to 36 VDC supply voltage
The LTX15 level sensors are primarily designed for continuous level measurement of liquids
in conductive or non conductive reservoirs. The selection of corrosion-resistant materials
used for the probe rod, insulation and process connection, ensures that it can withstand
extremly corrosive materials. Ideal for swimming pools, water treatment plants, petrochemical,
pharmaceutical and many other commercial and industrial applications. LTX15 is low cost
and intended for OEM's.

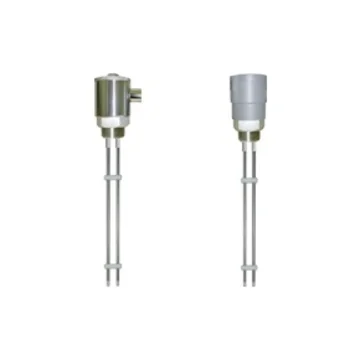

The LTX15 dual probe capacitance level transmitter is designed to measure level of
corrosive liquids in non-metalic as well as metalic tanks.
The probe measures level by measuring the change in capacitance as level changes in
the tank. The microprocessor-based electronics converts this capacitance change into
alinear, highly accurate 4-20 mA signal.
The compact, microprocessor-based design makes installation and setup a simple task.
The advanced signal conditioning circuitry greatly minimizes the adverse affects of coating
media.
Application/Process Notes
Pharmaceutical plants
Waste treatment plants
Water storage tanks
Chemical holding tanks
Food and beverage industry
Acids and very corrosive liquids
Do not use with:
Vegetable oil
Fuel oil
MEK and other solvents
