Features
- 1% of span accuracy for constant dielectric of material
- Non-interactive zero and span calibration
- Calibration accomplished with 4 push buttons
- Heavy duty industrial design
- NEMA rated aluminum, stainless, PVC and explosion proof housings available
- 3/4 NPT (special fittings available)
- 12 to 36 VDC supply power
LTX01 series 2-wire level transmitters are highly reliable microprocessor based sensors
designed to measure tank levels of liquids and certain dry bulk media in metal tanks.
LTX01 sensors measure the change in capacitance that occurs as the tank level changes
and outputs a standard loop-powered 4-20mA signal. After calibration any change in level
is recognized and converted to an analog 4-20mA signal. LTX01 sensors use very high
frequency and very low amplitude sensing circuitry to greatly minimize the effects of coating
on the sensing probe.

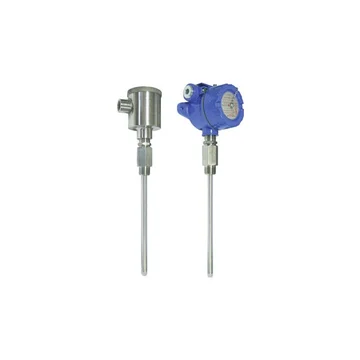

The LTX01 includes a standard 4-20mA loop powered LTX transmitter housed in a rugged
enclosure, a 0.50-inch diameter rigid probe for ranges up to 20 feet and a fitting. Probe
material is SS316, supplied bare or PFA jacketed. The LTX01 is designed for tanks which
have fitting connections of 3/4 NPT or larger.
The LTX01 is shock resistant and can be used in many demanding industrial applications.
There are no moving parts and the PFA jacketed probe can withstand temperatures of up
to 200°C and pressures to 500 psi.
Application/Process notes
Water and water-based liquids
Jacketed probes required for conductive media
Organic Acids
Oils and fuels in some metalic tanks
Use bare probes with non-conductive media
Use cable probes where top side access is limited
On-site calibration required>
Not recommended where material dielectric changes
Tank must be conductive or grounding may be required or see
other Intempco level probe
