Features
- Continuous loop powered 4-20 mA operation
- Microprocessor Based
- Accuracy 1% of span for constant dielectric of material
- Non-interactive zero and span calibration
- Calibration accomplished with 4 push buttons
- Heavy duty industrial design
- NEMA rated aluminum, stainless, PVC and explosion proof housings available
- Standard fitting 1-1/2 NPT, flange and special fittings available
- Standard or custom probe lengths are available from 6 inches to 20 feet
- SS316 outside tube
- Choice of bare SS316 or Teflon coated probe
- 12 to 36 VDC supply voltage

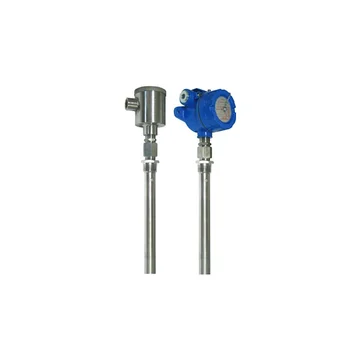

LTX02 series 2-wire level transmitters are essentially LTX01 transmitters assembled
with a concetric tube. LTX02 sensors can measure tank levels of liquids in metalic as
well as non-metalic tanks. All other performance specifications are indentical to LTX01
sensors.
Ideal applications for the LTX02 include systems utilizing irregularly shaped tanks
(ie. cone shaped); water based liquids in non-metallic tanks with the teflon coated
probe and oil/mineral based liquids in metal/non-metallic tanks with the bare SS316 probe.
Liquids being used must be compatible with chosen probe material; SS316 or PFA Teflon.
The LTX02 includes a standard 4 - 20mA loop powered LTX transmitter,a rugged customer
selected enclosure, a rigid bare SS316 or Teflon coated probe, concentric tube for ranges of
up to 20 feet and a fitting. The LTX02 is designed for tanks which have fitting connections
of 3/4" NPT or larger. Call factory for smaller tank openings or special applications.
Application/Process notes
Water and water-based liquids in non-metalic tanks
Jacketed probes required for conductive media
Organic Acids compatible with SS316
Oils and fuels in metalic and non-metalic tanks
Use bare probes with non-conductive media
On-site calibration required
Not recommended where material dielectric changes
