Features
- Models LV36 / LH35 / LV35 Float Level Switches
- Orientation:
- LV35/LV36: ±20° vertical
- LH35: ±20° horizontal
- 316 SS level sensor for high temp and pressure applications
- Accuracy: ± 3mm in water
- Specific gravity:
- LV35/LV36: 0.7 minimum
- LH35: 0.6 minimum
- Contact type: (1) SPST reed
- Contact rating:
- Contact output: Selectable NO / NC
- Process temp: -40 to 392°F (-40 to 200°C)
- Pressure:
- LV35: 300 psi (20.7 bar)
- LV36: 500 psi (34.5 bar)
- LH35: 300 psi (20.7 bar)
- Process mount:
- LV35: 1/8” NPT
- LV36: 1/4” NPT
- LH35: 1/2” NPT
- Sensor rating: NEMA6 (IP68)
- Sensor material: 316 SS
- Wire jacket material: Polymeric
- Wire type: 2-conductor
- Wire length: 2’ (61cm)
- Repeatability: ±1mm in water

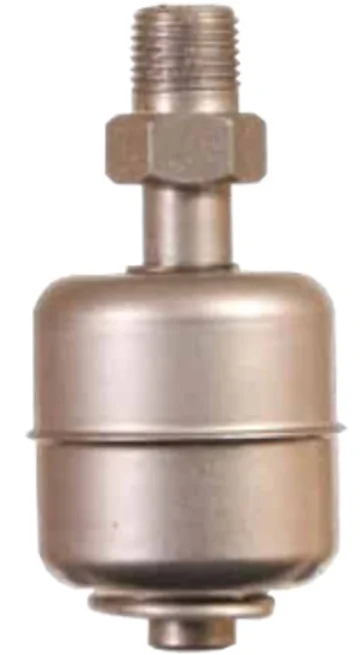

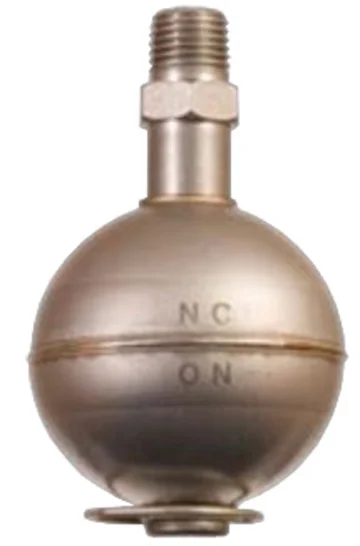

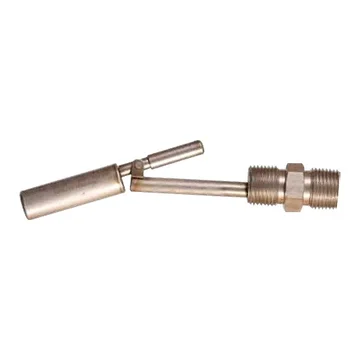

The Flowline LV36 / LH35 / LV35 Switch Tek Float Level Switch are offered in both vertical and horizontal configurations, the general
purpose high-temp float level switches provide reliable liquid level detection of relatively clean water, diluted chemicals and light
weight oils with a 30VA or 100VA reed switch output. Media examples include hot deionized water and cooking oil. The stainless steel
liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level
alarm.
Additional feature and benefits for the Flowline LV36 / LH35 / LV35 Switch Tek Float Level Switch include:
316 SS level sensor for high temp and pressure applications
Dry contact reed switch selectable NO or NC via float orientation
Vertical and horizontal mounting configurations for high or low level point detection
Simple level switch for high temperature/pressure applications
Switches wire directly to a PLC/SCADA or controller
Switches can be converted in the field from NO to NC
