Features

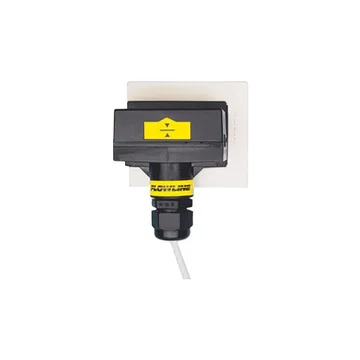

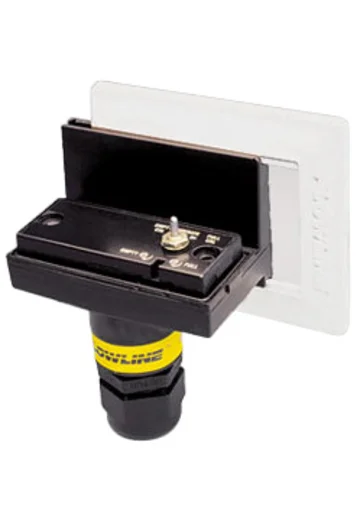

- LP50 Switch Tek LP50 Non Intrusive Capacitance Level Switch
- Accuracy: ±1mm in water
- Dielectric range: less than 10 constants
- Conductance range: less than 100µ
- Level detection through plastic or fiberglass walls
- Contact type: (1) SPST relay
- Process temp: -40 to 176°F (-40 to 80°C)
- Contact output: Selectable NO / NC
- Enclosure rating: NEMA4X (IP65)
- Enclosure material: PSO
- Contact rating: 60 VA, 1A maximum
- Repeatability: ± 0.5mm in water
- Cable jacket material: Polypropylene
- Cable type: 4-conductor, shielded #22AWG
- Cable length: 10’(3m)
- Conduit entrance: 1/2” NPT
- Tank mat. comp.: Non-metallic
- Tank mounting: bracket w/3M adhesive, plastic thermal weld
- Tank wall thickness: less than 1”(25mm)
- Bracket material:
- 6005; Polyethylene
- 1005; Polypropylene
- 5005; PVDF
The Flowline LP50 Switch Tek Level Switch is a general purpose non-intrusive capacitance level switch that provides
reliable liquid level detection of water based conductive liquids with non-coating and/or scaling characteristics
with a 1A relay output. Media examples include hydrochloric, sulfuric acid and water. The liquid level sensor is
bracket mounted on the exterior wall of non-metallic tanks and applied as a high level alarm or low level alarm.
Additional features and benefits of the Flowline LP50 Switch Tek Level Switch include:
Non-intrusive level detection through plastic or fiberglass walls
Installed with polyethylene, polypropylene or PVDF adhesive 3M mounting brackets
Rugged PSO enclosure rated NEMA4X with conduit connector
60VArelay selectable NO or NC via power supply wiring polarity
Ideal for high purity conductive liquids
Three different bracket materials makes attachment to tank easy
Great for non-metallic or FRP tanks up to 1" thick
Use as a high or low level switch
