Features
- Model LU10 Switch Tek Ultrasonic Level Switch
- Accuracy: ±1mm in water
- CSA approved intrinsically safe for hazardous environments
- Submersible polypropylene or PFATeflon sensor
- Contact type: (1) SPST relay
- CSA approved intrinsically safe
- Pressure:
- 150 psi (10 bar) @ 25°C
- derated @ 1.667 psi (0.113 bar) per °C above 25°C
- Contact output: Selectable NO / NC
- Submersible polypropylene or PFATeflon® sensor
- Process temp: -40 to 176°F (-40 to 80°C)
- Contact rating:
- GP: 60 VA
- IS: 32 VDC @ 0.5A
- Sensor rating:
- 1XX5: NEMA6 (IP68)
- 2XX5: NEMA4X (IP65)
- Repeatibility: ±0.5mm in water

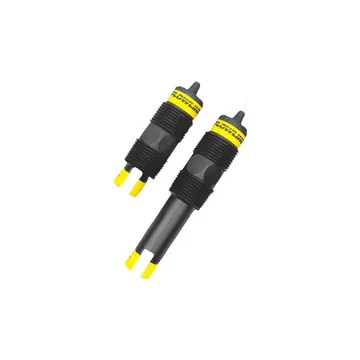

The Flowline LU10 Switch Tek Ultrasonic Level Switch is CSA approved for hazardous environments, the intrinsically safe ultrasonic point level switch provides reliable liquid level detection of chemical, solvent, hydrocarbon and petroleum based liquids with a 1A relay output. Media examples include fuel, acetone and hydrochloric acid. The submersible polypropylene or PFA liquid level sensor is universally mounted through the tank wall or inside the tank as a high level alarm or low level alarm.
Additional features and benefits of the Flowline LU10 Ultrasonic Level Switch include:
CSA approved intrinsically safe for use in hazardous environments
Submersible polypropylene or PFATeflon sensor and cable for corrosive liquids
60VA relay selectable NO or NC via power supply wiring polarity
Compatible with Smart Trak and Switch-Pak installation fittings
Ideal for highly corrosive liquids
Able to mount through the side wall or top wall of tank
Compatible with Smart Track or Switch-Pak mounting options
Use as redundant alarm in classified applications
