Features
- 1.5m (4.9ft) and 3m (9.8ft) measurement ranges
- 2in (5cm) beam width
- Accuracy:
- US01: 0.125in (3mm)
- US03: ±0.2% of range
- Resolution:
- US01: 0.019in (0.5mm)
- US03: 0.039in (1mm)
- 500 ohms @ 24 VDC loop resistance
- 14-28VDC supply voltage
- -40° to 176°F (-40° to 80°C) process temperature
- Type 6P (IP68) compact enclosure
- CE and RoHS compliant

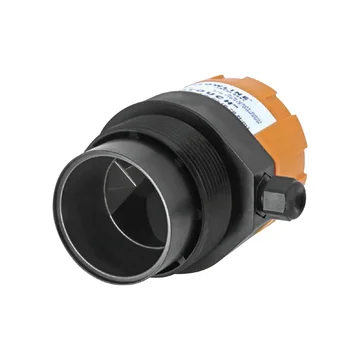

The Flowline EchoTouch US01 & US03 level transmitter is an intrinsically safe reflective
ultrasonic level transmitter provides continuous level measurement up to 9.8ft (3m) with
a 4-20mA analog signal output, and is configured via the Flowline WebCal software. The
non-contact liquid level sensor features our proprietary Reflective Technology™ that
delivers reliable level measurement in condensing environments. The US01 and US03 is
ideal for small tanks with non-foaming or highly vaporous media such as chemicals, water,
wastewater and oil.
