Features
- Measurement ranges:
- 8in to 19.6ft (20cm to 6m)
- 18in to 39.3ft (45cm to 12m)
- Fail-safe diagnostics with selectable signal fail-safe outputs
- Corrosion resistant PVDF transducer
- 3in (7.6cm) dead band maximizes tank filling capacity
- Temperature compensation from -40° to 80°C.
- 4 programmable relays with embedded control logic:
- 1 pump or valve with 3 alarms
- 2 pumps lead-lag with 2 alarms
- 2 pumps duplexing with 2 alarms
- 4 independent switch point alarms
- CE, RoHS compliance

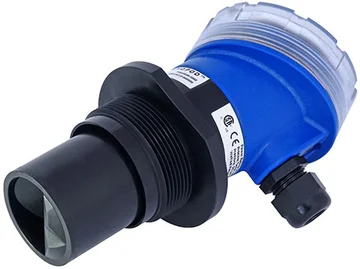

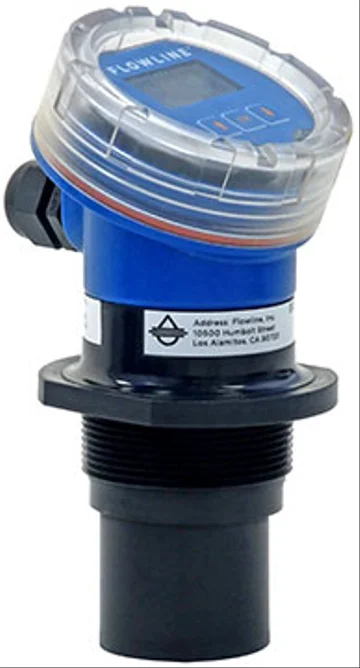

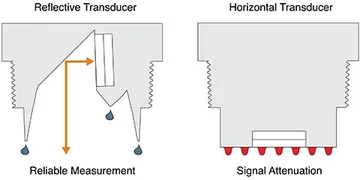

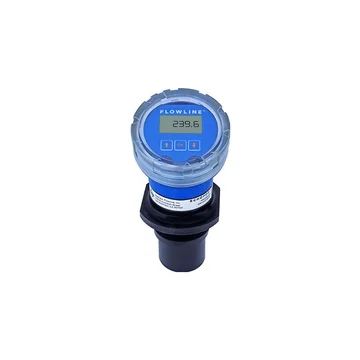

The Flowline EchoPod UG06 and UG12 reflective ultrasonic level transmitters offer continuous level measurement up to 39.3 feet (3m) and feature a 4-20 mA analog signal output and four relays. Additionally, configuration of the UG06 and UG12 can be done via WebCal software (free download). What makes this Flowline EchoPod ultrasonic level transmitter stand out is its proprietary Reflective Technology™ which allows for reliable measurement in condensing environments.
The Flowline EchoPod UG06 and UG12 reflective ultrasonic level transmitters can be configured for alarm, automatic fill or empty functions. Common applications for these EchoPod units include day tank, IBC or drum, cooling tower, ski or machine, process tank and waste sumps. Additionally, the UG06 and UG12's Reflective Technology™ make it an ideal fit for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil.
WebCal software is a PC utility program that enables users to easily configure and test compatible Flowline level sensors to their measurement and control requirements.
