Features
- Offered in 3 ranges from 4in to 32.8ft (10 cm to 10m)
- 4-20mA, 2-wire signal output
- ±0.2% of span accuracy
- Narrow 3 inch beam width
- Fail-safe intelligence with diagnostic feedback
- IP65 (NEMA 4X) enclosure rating

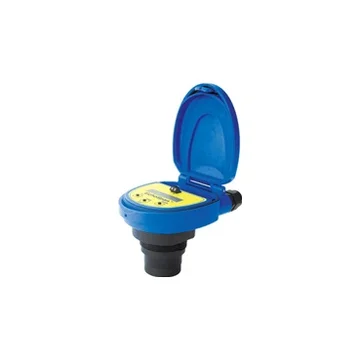

The Flowline EchoSpan Ultrasonic Level Transmitter is a general purpose two-wire ultrasonic level
transmitter which provides non-contact level measurements from 8" up to 32' (10cm to 10m). With a PC
/ ABS enclosure rated NEMA 4X (IP65) and rugged PVDF transducer, the Flowline EchoSpan GP ultrasonic
level transmitter is ideally suited for challenging ultrapure, corrosive or waste liquids in atmospheric
bulk storage, day tank, and waste sump applications.
Calibration of the Flowline EchoSpan GP ultrasonic level transmitter is fast and simple with a scrolling
single layer menu, three button interface and 6-segment LCD display. Troubleshooting is easy with unique
Setup and Diagnostic feedback modes; Setup displays the transmitter's calibration set points, and Diagnostics
provides users with a snapshot of sensor performance and application variables.
