Edgetech DPS Series Dew Point Hygrometer

Features

• Microprocessor based electronics
• Two- or three-stage chilled mirror dew point sensor
• -31 to 203°F (-35 to 95°C) dew point range
  • ±0.4°F (±0.2°C) accuracy
• User programmable temperature controller
• 68 to 210°F (20 to 99°C) temp range
• Selectable analog outputs
  • 4 to 20mA, 0 to 5VDC, or 0 to 10VDC

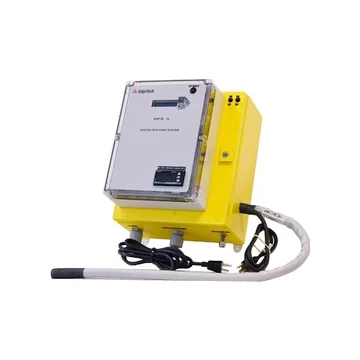

The Edgetech DPS series dew point hygrometer is an integrated system that includes a microprocessor based electronics, a chilled mirror dew point sensor, a sample flow meter/valve, a 3 foot heated sample line, assorted tubing and fittings; all contained in a heated, temperature controlled NEMA-4 enclosure. The heated sensor allows the measurement of high dew points that are above ambient temperature. Without the heated system condensation would occur and measurements could not be taken. The two-stage chilled mirror dew point sensor in the DPS3 provides an accurate and fundamental measurement of the dew point of the sample gas.
