Features
- Range
- Dew Point: -50 to 50ºC
- Ambient Temperature: -50 to 50ºC
- %-Relative Humidity: Approximately 1% to 95%
- Accuracy
- Dew Point and AT: ±0.25ºC
- %-Relative Humidity: ±1.0 to 1.5%
- 65º Dew Point Depression
- Temperature Sensors: PRT (Platinum Resistance Thermometer), 100 ohms at 0ºC
- Outputs
- 0-5 VDC or 4-20mA over span (DP)
- TTL compatible clean mirror signal

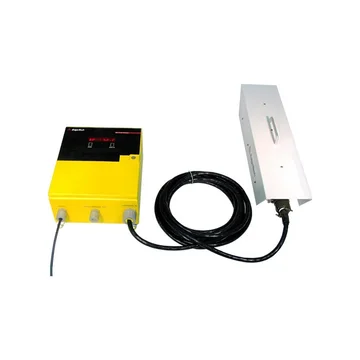

The Edgetech 200M DewTrak meteorological humidity system consists of a thermally shielded enclosure for the dew
point and ambient temperature sensors, a microprocessor-based electronic control unit and 25 feet of interconnecting
cable. The Edgetech 200M is a complete instrument for the measurement of atmospheric dew point, ambient temperature,
%-relative humidity and other psychometric variables.
Utilizing a very reliable optical chilled mirror sensing technology, Edgetech 200M DewTrak meteorological humidity
systems provide a primary measurement of dew point and is NIST traceable. The Edgetech 200M is ideally suited for
installations requiring continuous, automatic and unattended measurement of humidity over a very wide range.
Automatic Balance Control (ABC) cycle corrects the light reducing effects of mirror contaminants and allows for
continuous monitoring and virtually maintenance-free operation.
The Edgetech 200M measures dew point in °C or °F and is available with a two stage dew point sensor. The Edgetech
200M reduces the need for cleaning by the incorporation of self-diagnostics which indicates when, and if, maintenance
is required.
