Features
- 1 up to 10,000psi
- Custom pressure ranges available
- -67 to 257°F (–55 to 125°C) operating temp
- Accuracy in full scale, best straight line
- ±0.20% industrial
- ±0.10% improved
- ±0.04% premium
- 3.5 kHz frequency response
- Stainless steel construction
- mV, mA, voltage & configurable voltage outputs
- Multiple electrical & pressure connection options
- Custom cable lengths available
- High over pressure capability
- Hazardous area certifications

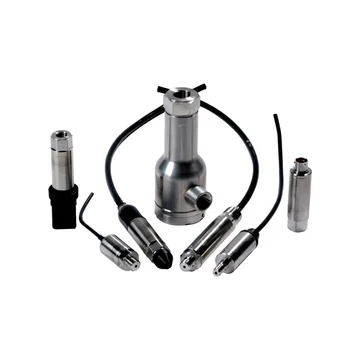

The Druck UNIK 5000 pressure sensing platform is a high performance configurable solution to pressure measurement. The use of Druck silicon technology and analog circuitry enables best in class performance for stability, low power and frequency response. The new platform enables you to easily build up your own sensor to match your own precise needs. This high performance, configurable solution to pressure measurement employs modular design and lean manufacturing techniques.
UNIK 5000 sensors are available with pressure ranges from 1 to 10,000psi. There are three grades of performance (Industrial, Improved and Premium), offering accuracies from 0.2% to 0.04%. A wide range of pressure connectors, electrical connectors, and electrical outputs are available to suit most environments with operating temperature ranges from -67 to 257°F. All units feature high overpressure capability, are constructed from high grade stainless steel and are compliant with global and regional certification bodies (pending).
High levels of performance have been achieved without the use of digital electronics making UNIK5000 sensors particularly well suited to sensitive applications, such as those requiring low power, low noise pulse power and fast response.
UNIK5000 Applications include:
Depth and Level
Industry and process
Oil and Gas
Aerospace
Power Generation
Marine
Custom pressure ranges and cable lengths are available upon request. Please contact us for details.
