Features
- Exposed silicon construction
- Barometric pressure to 0.1mbar (0.1hpa)
- Pressure range, 1 to 3.5 Bar (50 psi)
- Low g sensitivity
- High precision, ±0.01% FS
- High stability, ±100 ppm FS/year
- Multiple output configurations
- TTL and Diode
- RS-232 and RS-485
- Wide selection of pressure and electrical connections
- LabVIEW driver available for TERPS DPS versions

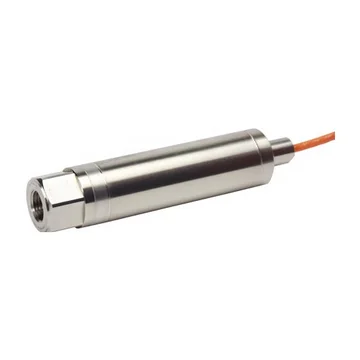

The Druck TERPS RPS/DPS 8100 Pressure Sensor is the first product to incorporate the new TERPS technology. TERPS is a resonant silicon pressure sensor technology platform that provides an order of magnitude greater accuracy and stability than current pressure measurement technologies available. The new TERPS technology also extends the pressure range capability to high pressures and by incorporating true pressure media isolation greatly improves its suitability for use in harsh environments.
The TERPS RPS/DPS 8100 product line takes advantage of best practices to offer a wide range of pressure and electrical connections to enable a level of customization for your specific requirements never before available in the performance class of this sensor.
The combination of the power of the TERPS technology and the quality, reliability and flexibility of the RPS/DPS 8000 Series offer a truly unique solution for high accuracy and high stability pressure measurement requirements.
The RPS/DPS 8100 can be used for a variety of applications requiring high levels of precision and stability including:
Encasement of historical documents
Barometers weather stations
Steam turbine optimization
Leak detection
Using pressure measurements to infer density
Tsunami level monitoring
Ship ballistic tank
ROV and AUV depth measurement
Sea bed level monitoring
Engine test monitoring
Fuel control turbine generators
Aero-test altitude monitoring
