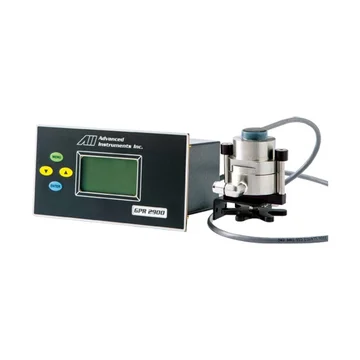

AII GPR-2900 Oxygen Analyzer

Features

• Measuring range:
  • 0-1%, 0-5%, 0-10%, 0-25%;
  • Optional 0-1%, 0-5%, 0-10%, 0-100%
• Accuracy: <2%
• Barometric pressure and temperature compensation
• Two user configurable alarms
• Range ID output
• 12 to 28 V DC or mains powered options
• XLT sensor options for CO2 backgrounds

The AII GPR-2900 Oxygen Analyzer is a general purpose oxygen analyzer with barometric pressure and temperature compensation, four measurement ranges, and two user configurable alarm contacts. All versions can be locked manually to a single range or auto-range. The analyzer also features a 4-20mA isolated signal output, 4-20mA or 1-5V DC range ID outputs, Delrin remote sensor housing with 1/8-inch tube fittings, AC or DC power, and a panel mount aluminum enclosure. The GPR-2900 operates with a remote sensor to allow flexibility of installation, and measures O2 up to 100%. The remote sensor block allows an easy oxygen sensor replacement for simple and fast maintenance and low cost of ownership. Applications for the GPR-2900 include: Nitrogen or oxygen generators Glove boxes Oxygen injection in fish farms Confined space monitoring Sintering and other metal processing Delignification and bleaching in pulp & paper
