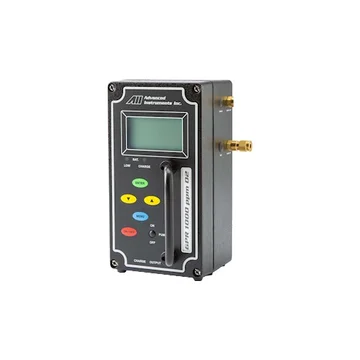

AII GPR-1000 Oxygen Analyzer

Features

• Measuring range: 0-1000 ppm, 0-1%, 0-25%
• Accuracy <2%
• Sensor models:
  • GPR-12-100-M
  • XLT-12-100-M
• 24 to 32 months sensor life span (in normal use)
• Internal pump option
• General purpose or intrinsically safe (ATEX) models
• 0 to 1V output
• 0.5-1.0 Nl/m (1-2 SCFH) flow rate
• XLT sensor options for CO2 backgrounds
• Lightweight: 2.5Kgs

The AII GPR-1000 Oxygen Analyzers is designed for measuring oxygen below 1,000ppm with an LDL of 5ppm and is temperature compensated. The GPR-1000 oxygen meter can also be operated up to 1% range. The GPR-1000 is supplied with brass fittings. Available options for the GPR-1000 include XLT sensor backgrounds, stainless steel fittings, weld purge kit. Ranges for for the GPR-1000 include 0 to 1,000ppm & 0 to 1% (0 to 25% for calibration only). Applications for the GPR-1000 include: Oxygen and nitrogen generators Storage holds on marine vessels post maintenance Oxygen in tankers during delivery Metal treatment processes Leak checking processes Double glazing manufacture Welding (under N2 or Ar purge)
