Features
- 122 to 1,121°F (50 to 605°C) temperature range
- 5.3in dia x 6in depth (134mm x 152mm) working volume
- ±2.0°C calibrated accuracy
- 1.5 lbs max capacity
- ±0.3°C stability
- Heat up time 70 minutes
- Cool down time 130 minutes
- Independent over-temperature limit protection

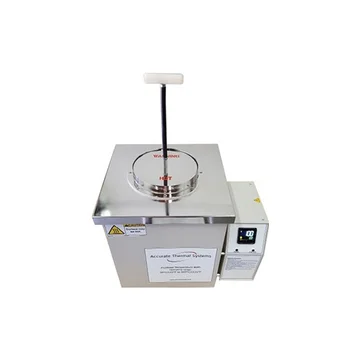

Accurate Thermal Systems FTBSL6 Fluidized Temperature Bath features a temperature range of 122 to 1,121°F(50 to 605°C) and
calibrated accuracy: ±2.0°C. The compact working volume is 5.3" in diameter and 6" in depth (134mm x 152mm). Weighing only
45 lbs the FTBSL6 is completely portable. The FTBSL6 has a heat up time of 70 minutes and a cool down time of 130 minutes.
The unique bath cover and lid design minimizes media loss. Media is either blocked by the lid or collected on the cover flange
which then drops back into the system. The included lid with handle is lowered into the Fluidized Bath for cleaning parts, heat
treating or calibrating temperature sensors as shown.
Applications for the FTBSL6 inlcude:
Thermal cleaning of small Extrusion tooling and polymer rheometer and melt flow indexer parts
Nitinol shape setting
Temperature sensor and system calibration
Reactor Heating
General heat treatment of devices & materials
