Features
- 122 to 1121°F (50 to 605°C) temp range
- 8 3/8in x 26in working volume
- ±1.5 stability
- 50lb cleaning capacity
- 180 minute heat up time to 600°C
- 210 cool down time
- Air pressure required
- Clean dry air supply at fixed 40 PSI
- Max flow of 4.0 CFM
- 1 year warranty

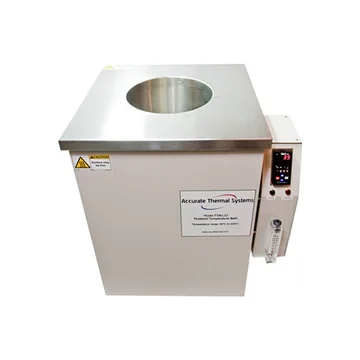

The Accurate Thermal Systems FTBLL26 Fluidized Baths meet a wide range of applications where a stable and uniform
temperature environment is required. They have been used for decades to clean extrusion tooling, shape set medical
devices, calibration, testing various sensors and systems, heat treatment of metals as well as heating of reactors,
coils, flasks and containers. See our application pages for further details.
A fluidized bath's liquid like properties provide fast heat transfer to immersed objects for the immediate desired
results. Large working volume and heat capacity are good for heating both large and small objects. The FTBLL26 baths
are designed for large heat loads such as cleaning extrusion tooling and other parts as well as heating reactors.
The control box houses both temperature and air control functions. All of our systems include automatic air control,
calibrated temperature controls and RS232 interface with included Windows software for completely automatic turn-key
operation. The air and temperature control system can be remotely placed within 10 feet of the bath as an option.
