Features
- Fully automatic fluidizing air control
- 15.8in x 47in working volume
- 200lb cleaning capacity
- ±10.0 Stability at 900°F
- 190 minutes heat up time to 900°F
- 300 minute cool down time
- Independent over-temperature protection
- Advanced PID temperature controller
- Cleans most tooling in under 60 minutes
- Removes all types of polymer including:
- Paint
- Adhesives
- Resins
- Plastic

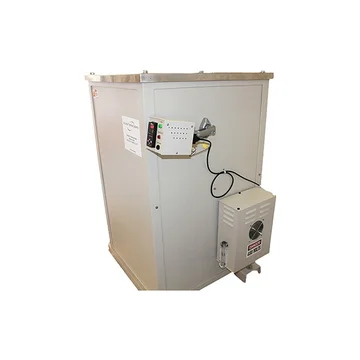

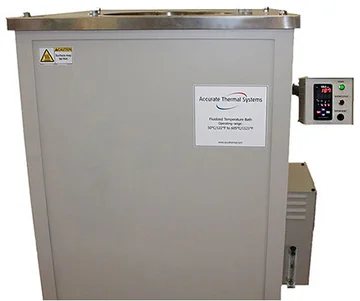

The Accurate Thermal Systems FTBLL47 Fluidized Temperature Baths offer offer fully automatic
fluidizing air control and an advanced PID temperature controller for thermal performance. The
FTBLL47 uses a PID temperature controller that has four control zones for improved thermal
results. Independent over temperature protection will disable heat if the temperature exceeds 610°C or
if the air supply pressure drops below 60 PSI. Fluidizing air is automatically controlled by the system.
The control box is mounted on an articulating arm so it can be moved out of the way for improved access
to the bath. The horizontal and vertical position of the arm can be changed as well as angle for easy
viewing. It is connected the main control box via a 15 way cable. An air flow meter mounted on the main
control box displays Fluidizing air rates.
Thermal cleaning of extrusion tooling including:
Breaker plates
Dies
Nozzles
Tips
Screens
Metal filters
Flanges
Hardware
And more
