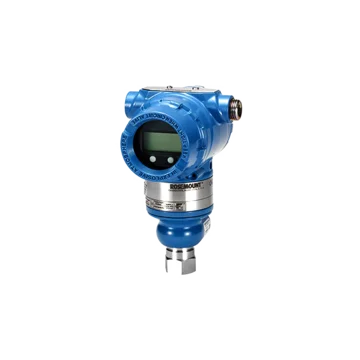

Ordering Information Model 3051T(1) In-Line Pressure Transmitter Pressure type G Gage Pressure range 2(2) -14.7 to 150 psi (-1,01 to 10,34 bar) Transmitter output A(3) 4–20 mA with Digital Signal Based on HART Protocol Process connection style 2B 1 /2–14 NPT Female Sensor fill fluid 1 Silicone Integral assembly S5 Assemble to Rosemount 306 Integral Manifold Mounting bracket B4 Bracket for 2-in. pipe or panel mounting, all stainless steel Calibration certification Q4 Calibration certificate Configuration buttons D4(5) Analog zero and span Display and interface options M5 LCD display Conduit plug DO 316 SST conduit plug Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required. 3051TG lower range limit varies with atmospheric pressure. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Only available with HART 4–20 mA output (code A). Ordering Information Manifold Model 0306 In-line manifold Manufacturer R Rosemount Manifold style T Threaded Manifold type 2 Two-valve Process connection AA ½–14 male NPT process connection for in-line transmitter Packing material 1(1) PTFE Valve seat 1 Integral Includes PTFE tape on drain/vent valves and plugs.
