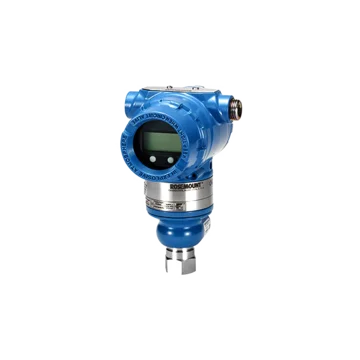

3051TG5A2B21AB4M5P1Q4S5 | Rosemount 3051T In-Line Pressure Transmitter with Integral Manifold

Name: 3051TG5A2B21AB4M5P1Q4S5 | Rosemount 3051T In-Line Pressure Transmitter with Integral Manifold
Brand: Rosemount
Price: 1772600000 IRR
Availability: InStock

برند :

Rosemount

پارت نامبر :

3051TG5A2B21AB4M5P1Q4S5

شماره انبار :

ST-20498

زمان تحویل:

12 هفته

قیمت حدودی:

177,260,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Type	3051T In-Line Pressure Transmitter with Integral Manifold
Model	3051T¹ - In-Line Pressure Transmitter
Remark	This transmitter comes with integral manifold 0306RT22BA11.
Pressure type	G - Gage
Pressure range	5 - -14.7 to 10000 psi (-1,01 to 689,47 bar) [Gage (3051TG)²]
Housing material	A - Aluminum; ½?14 NPT (Conduit entry size)
Pressure testing	P1 - Hydrostatic Testing with Certificate
Integral assembly	S56 - Assemble to Rosemount 306 Integral Manifold
Mounting bracket5	B4 - Bracket for 2-in. Pipe or Panel Mounting, All SST
Sensor fill fluid	1 - Silicone
Transmitter output	A³ - 4?20 mA with Digital Signal Based on HART Protocol
Isolating diaphragm	24 - 316L SST; 316L SST [Process connection wetted parts material]
Process connection style	2B - 1/2?14 NPT Female
Calibration certification	Q4 - Calibration certificate
Display and interface option	M5 - LCD Display

Description / توضیحات

Ordering Information NOTE: Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required. 3051TG lower range limit varies with atmospheric pressure. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Panel mounting bolts are not supplied. ?Assemble-to? items are specified separately and require a completed model number.
