خانه/ پایپینگ/ اتصالات/ منیفولد ولو/ Rosemount/ 0305RC52B11 | Rosemount Integral Manifold
12771
منیفولد ولو

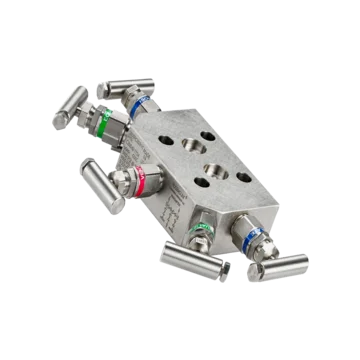

0305RC52B11 | Rosemount Integral Manifold

برند :

Rosemount

پارت نامبر :

0305RC52B11

شماره انبار :

ST-27437

زمان تحویل:

5 هفته

قیمت حدودی:

37,580,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Body22 - 316 SST/316L SST
Model0305 - Integral manifold
Bonnet316 SST
WarrantyUp to 5-year limited warranty
Valve seat1 - Integral
Manifold type51 - Five valve
CertificationsCleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications
Manifold styleC - Coplanar
Product Number0305RC52B11
Packing MaterialPTFE, graphite-based
Packing material14 - PTFE
Manifold Material316 SST/316L SST, Alloy C-276, Alloy 400
Stem and tip/ball316 SST
Process Connections1/4“-18 NPT female, 1/2“-14 NPT female, 1/2“-14 female NPT flange adapter, 12 mm ferrule tube flange adapter
Process connection styleB3 - 1/2–14 NPT female
Maximum Operating Temperature1000°F (538°C)
Process Connection OrientationParallel with transmitter, 90° to transmitter

Description / توضیحات

Specifications Features Designed for direct assembly to Rosemount Coplanar transmitter interface, eliminating the need for a flange 50% tewer potential leak points than conventional transmitter to flange to manifold interface Lightweight manifold design can be factory-assembled, leak-tested and calibrated for easy installation process 2-, 3- and 5-valve configuration for multivariable, absolute, gage and differential pressure transmitters Ordering Information NOTE: Not available with traditional manifold style T. Refer to page 25 for additional detail on process wetted materials of construction. Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange. Includes PTFE tape on drain/vent valves and plugs.

Attachment / فایل ضمیمه

Product Data Sheet: Rosemount™ Manifold Solutions
