Features
- All-welded design
- -30inHG up to 5000 psi pressure range
- Vacuum, compound and gauge pressures available
- ±1.0% of span accuracy
- 4.5in dial size
- Dry or liquid fill
- Eliminates all potential leak paths
- Tamper-resistant construction

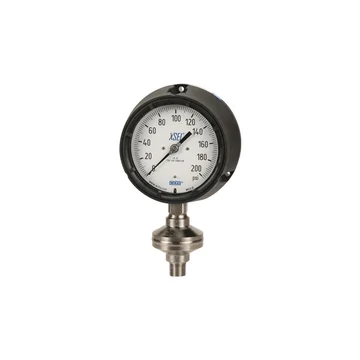

The WIKA Type M93X.D1 Pressure Gauge eliminates all potential leak paths and has a tamper-resistant construction. The
all-welded system is ideal for installations where tightly controlled fugitive emissions and safety are a concern. The
M93X.D1 is well-suited for applications in the chemical, petrochemical and process industries.
This all-welded gauge assembly is constructed using WIKA gauge model number 23X.34 and diaphragm seal model number L990.34.
The diaphragm is recessed within the all-welded seal body.The pressure gauge is back-welded to the seal upper housing to
eliminate another potential leak path. The threaded seal fill port has been removed to ensure a tamper resistant design.
Additional process wetted materials, process connections, system fill fluids and accessories are available to meet the
rigorous demands of most applications.
