Features
- External flush diaphragm
- 3/4in or 1in process connection options
- 1,200 psi maximum
- 2 1/2in dial size
- ±2/1/2% full span accuracy
- Polished stainless steel case
- 316L SS, electro-polished wetted parts
- Standard polycarbonate window

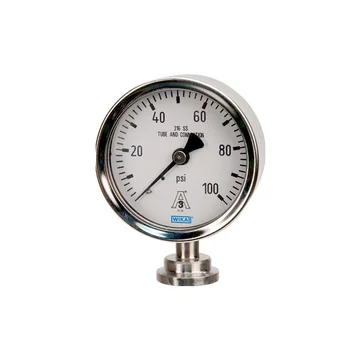

The WIKA M93X.25 Sanitary Pressure Gauge features an external flush diaphragm with a tri-clamp connection. The
M93X.25 requires hydraulic fluid to transmit pressure to instrument. 3/4in and 1in tri-clamp process connections
are available. The M93X.25 is built with 316L SS wetted parts. It has a 2 1/2in dial size and is available in
a dry or liquid filled case.
Applications for the M93X.25 include:
Pharmaceutical industry
Biotechnology
Food & beverage
