Features
- Style RT for use with Thermowells Specifications:
- Mineral insulated includes 0.250 inch O.D.
- Spring-loading ensures positive contact
- Complete assembly available
- Head mounted 4-20mA transmitter, two or three-wire input and non-isolated
- Variety of connection head options available

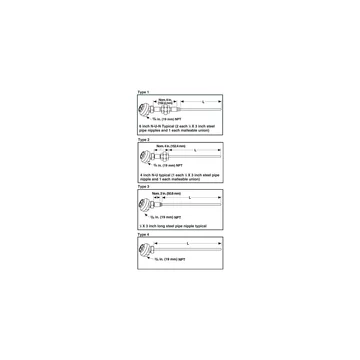

The Watlow RT style RTD features a connection head and is for use with thermowells.
Watlow RTDs
Watlow's platinum resistance elements are specially designed to ensure precise and repeatable temperature
versus resistance characteristics. Watlow RTDs are made with controlled purity platinum, have high purity
ceramic components, and are constructed in a unique strain-free manner.
Performance Capabilities
Ceramic elements are extremely precise and stable within the wide temperature range of -200 to 650°C (-328
to 1200°F).
Patented, strain-free construction
Provides dependable, accurate readings
Allows elements from different lots to be substituted without recalibration
High signal-to-noise output
Increases accuracy of data transmission
Permits greater distances between sensor and measuring equipment
Temperature coefficient (alpha) carefully controlled while insulation resistance values exceed DIN-IEC-751
standards.
Ensures sensor sensitivity
Minimizes self-heating
Allows precise measurement
Repeatable
Highly controlled manufacturing process
Ensures wide temperature range
Stabilizes physical and chemical attributes
Applications for the Watlow RTD for Use with Thermowells
Air conditioning and refrigeration servicing
Furnace servicing
Stoves and grills
Textile production
Plastics processing
Petrochemical processing
Micro electronics
Air, gas and liquid temperature measurement
Exhaust gas temperature measurement
