Features
- Stainless steel transitions crimped to sheath, epoxy filled
- Coiled spring strain relief for lead wire protection
- Flexible mineral insulated construction
- Bendable and highly durable sensor
- -328 to 1200°F temperature rating
- High accuracy provides dependable readings
- 0.125 to 0.250 inch diameters available

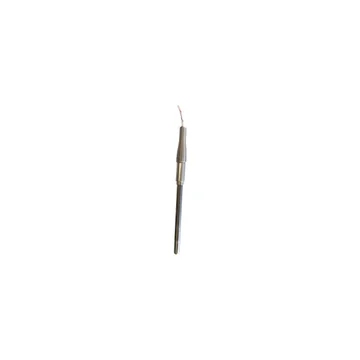

Watlow RF style RTDs feature high accuracy probes with a number of lead options and coiled spring
strain relief to protect the leads against sharp bends in the transition area.
Watlow RTDs
Watlow's platinum resistance elements are specially designed to ensure precise and repeatable
temperature versus resistance characteristics. Watlow RTDs are made with controlled purity platinum,
have high purity ceramic components, and are constructed in a unique strain-free manner.
Performance Capabilities
Ceramic elements are extremely precise and stable within the wide temperature range of -200 to 650°C
(-328 to 1200°F).
Patented, strain-free construction
Provides dependable, accurate readings
Allows elements from different lots to be substituted without recalibration
High signal-to-noise output
Increases accuracy of data transmission
Permits greater distances between sensor and measuring equipment
Temperature coefficient (alpha) carefully controlled while insulation resistance values exceed DIN-IEC-751
standards
Ensures sensor sensitivity
Minimizes self-heating
Allows precise measurement
Repeatable
Highly controlled manufacturing process
Ensures wide temperature range
Stabilizes physical and chemical attributes
Applications for the Watlow Metal Transition RTD
Air conditioning and refrigeration servicing
Furnace servicing
Stoves and grills
Textile production
Plastics processing
Petrochemical processing
Micro electronics
Air, gas and liquid temperature measurement
Exhaust gas temperature measurement
