Features
- 20 to 100kHz frequency (1kHz increments)
- Detects 0.005in (0.127mm) diameter leak
at 0.34 bar (5psi)
at a distance of 50ft (15.24m)
- 400 memory locations
- 120 dB dynamic range
- Calibrated heterodyned output, dB frequency
- Open platform software
- Interchangeable modules
- Frequency tuning
- Upload and download data via USB
- NiMH rechargeable battery
- Warranty
1 year parts and labor
5 years with completed warranty registration

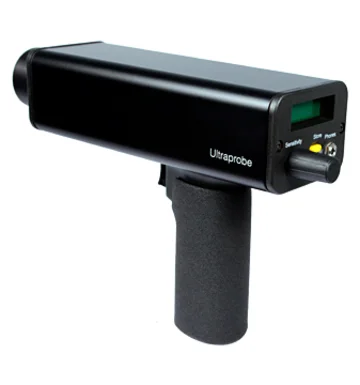

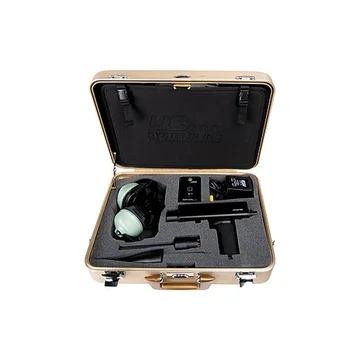

The UE Systems Ultraprobe 9000 ultrasonic inspection system is versatile and easy to operate. Data from either pre-planned routes or troubleshooting can be easily viewed and stored. UE Systems' spin and click technology simplifies sophisticated inspection processes. With only two controls, the user is able to locate potential problems, quickly change frequency or sensitivity, easily select functions, store data, and download data via USB output. The display panel shows the calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold during scanning. The complete Ultraprobe 9000 kit includes the Ultraprobe 9000 with pistol grip; a scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions; a rubber focusing probe for narrowing reception band of scanning module and for blocking out ambient ultrasound; a stethoscope probe for monitoring internal ultrasound such as in bearings, steam traps and valves; an extension probe kit to increase stethoscope contact range; and a warble tone generator with amplitude selection switch for use in tone test method. The Ultraprobe 9000's on-board data logging uses a data management system that provides multiple data views, a history table and spreadsheets, trend charts, and the ability to export files to MS Excel. Ultraprobe 9000 Ultrasonic Inspection System Applications Electrical and mechanical inspection Gear box inspection Heat exchangers, boilers, condensers Pressure and vacuum leak detection Leak testing in tanks and pipes Marine leak inspection Steam trap testing Bearing testing/trending
