Features
- 35 to 44kHz frequency range
- 10-segment LED bar graph
- 8-position sensitivity selection
- 300 msec response time
- 1-year parts and labor warranty

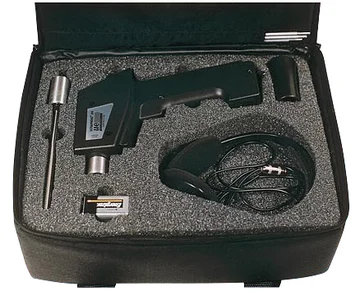

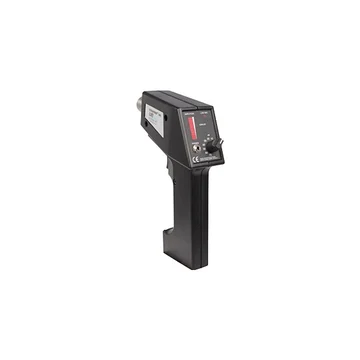

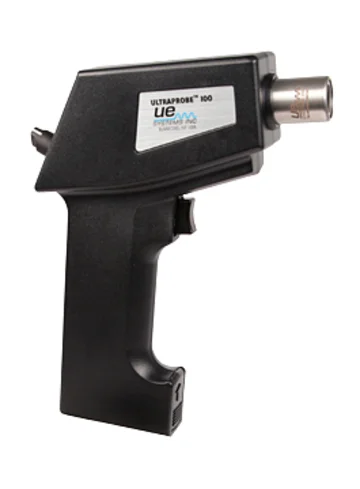

The UE Systems Ultraprobe 100 Ultrasonic Inspection System is an analog tool that senses high frequency sounds produced by operating equipment, leaks and electrical discharges. The signals are electronically translated by heterodyning, which converts the high frequency sounds into the audible range so they are easily recognized and understood. The user can both hear the sounds through a headset and view them as intensity increments on the Ultraprobe gun's LED meter. The Ultraprobe 100 features an 8-position sensitivity dial with decibel indications, and an LED bar graph display in which each LED equals approximately 3dB for calculating decibel levels. Ultrasound technology is advantageous for inspection because it produces a high-frequency, short-wave signal. Since it is directional and localized, it is ideal for point-and-shoot troubleshooting. It can also be easily blocked or shielded and used in noisy environments. Changes in ultrasound provide early warning of potential problems. Ultraprobe 100 Ultrasonic Inspection System Applications Pressure and vacuum leaks Valve seat leaks Exhaust system leaks Leak testing of tanks and pipes Heat exchangers, boilers, condensers Steam trap inspection Bearing testing Gear box inspection Wind noise, water leaks, hatches Mechanical inspection and troubleshooting Electrical inspection
