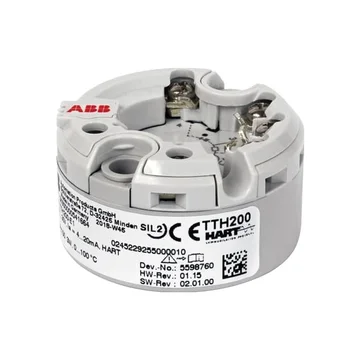

TTH200E1HBFCSEMGHAD3SFM5 | ABB TTH200 Head-Mount Temperature Transmitter

Name: TTH200E1HBFCSEMGHAD3SFM5 | ABB TTH200 Head-Mount Temperature Transmitter
Brand: ABB
Price: 1013300000 IRR
Availability: InStock

برند :

ABB

پارت نامبر :

TTH200E1HBFCSEMGHAD3SFM5

شماره انبار :

ST-51351

زمان تحویل:

10 هفته

قیمت حدودی:

101,330,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Model	TTH200 Head-Mount Temperature Transmitter
Base Model	TTH200 - TTH200 Head Mounted Temperature Transmitter, HART, Pt100 (RTD), thermocouples, electrical isolation
Zone 1 (20)	II 2 G (1D) Ex [iaD] ib IIC T6
Certificates	CS - SIL2 - Declaration of Conformity
Configuration	BF - Customer-specific configuration, except user curve*
Display Options	D3 - LCD indicator type AS
Mounting Options	SF - Snap-on fixing set for 35 mm rail acc. EN 60175 (incl. fixing screws)
Explosion Protection	E1 -
Communication Protocol	H - HART
Documentation Language	M5 - English
Calibration Certificates	EM - With 5-point factory certificate
Ex ia IIC T6, Zone 1 (0)	II 2 (1) G Ex [ia] ib IIC T6,
Handling of Certificates	GHA - Send with instrument

Description / توضیحات

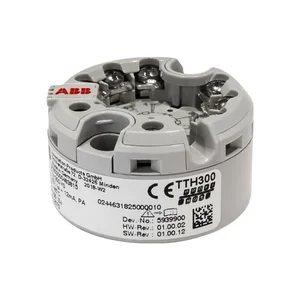

Overview The TTH200 is provided for all HART standard applications in temperature measurement with one sensor. The transmitter supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. It can be configured with ABB-tools such as DAT200 (Asset Vision Basic) via DTM, Handheld via EDD, FIM (Field Information Manager) or any standard tool using FDI-/FDT-Technology. Data Universal sensor input - RTD, thermocouple, O, mV Functional safety SIL 2 / SIL 3 in accordance with IEC 61508 Output signal - 4 to 20 mA, HART Accuracy 0.1 %, long-term stability 0.05 % per year Wire break / corrosion monitoring in accordance with NE 89 Diagnostic information in accordance with NE 107 Approvals for explosion protection - ATEX - FM / CSA - GOST Ordering Information ATEX Intrinsic Safety type of protection: Zone 0: II 1 G *E.g. set measuring range, TAG no.
