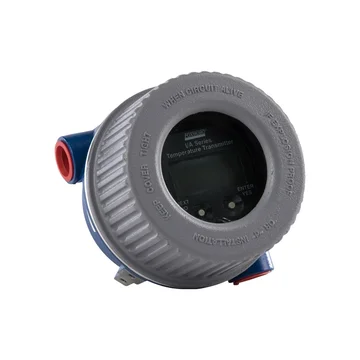

RTT15-T1LW4TBC-C2 | Foxboro RTT15 I/A Series Temperature Transmitter

Name: RTT15-T1LW4TBC-C2 | Foxboro RTT15 I/A Series Temperature Transmitter
Brand: Foxboro
Price: 1599900000 IRR
Availability: InStock

برند :

Foxboro

پارت نامبر :

RTT15-T1LW4TBC-C2

شماره انبار :

ST-5396

زمان تحویل:

12 هفته

قیمت حدودی:

159,990,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Model	RTT15 - I/A Series® Temperature Transmitter
Output Version	-T - Intelligent; Digital HART 5 and 4 to 20 mA dc
Electrical Safety	C - CSA, Intrinsically Safe, Explosionproof, and Division 2(4),(5),(6)
Input Configuration(1)	1 - Single Input; Configured for One Sensor
Thermowell Assembled to Housing	TB
Optional Selections - Miscellaneous	-C2 - Custom Database Configuration (Requires C2 Form filled out with all data specified)
Sensor Length - Dimension U or U + T(2)	W - 7.5 in (191 mm), Sensor included
Measurement Input Type (Software Selectable)(3)	4 - RTD, Platinum, 4-wire, 100 O, IEC 751 (ASTM-B Standard Accuracy), 316 ss Sheath
Housing and Sensor Mounting (Integral Sensor and Well)	L - Universal Housing. aluminum; with Integral Sensor and Well

Description / توضیحات

Ordering Information Well Type Well Connection Well Material Available with Sensor Length Codes Plain 3/4 NPT External 316 ss A, D, G, J, L, P, and R Input configuration can be changed in the field by changing wiring terminations and reconfiguring. Quantity of one Foxboro sensor that is listed under Measurement Input Type. Length is Dimension U or U + T as shown in the Dimensions-Nominal section of PSS 2A-1F5 A and in DP 020-462, where U is the insertion length, and T is the lagging length of 76 mm (3 in). See Note (d) below. Transmitter is configured for measurement type specified, whether sensor is included or not. User can change configuration to a different type using the appropriate configurator for selected protocol. Flameproof and explosionproof approvals and certifications not available with Thermowell Code NA (user-supplied thermowell). For HART version 7 (-H), contact Global Customer Support for availability of CSA and FM certification. With Option -L1, CSA is explosionproof only.
